back at home now.....

next date: JO72AK during the contest in june (6&9cm, 24&47GHz)


Plan for 2017: JO41PU, JO51EL, JO72AK on 3400, 5760, 10368, 24048MHz

project winter 2016/2017: New 10/24GHz transverter for portabel operation - here are the first steps - transverter box is homebrew

On the first floor are the transverters (10/24GHz with GPS controlled LOs), PAs (10GHz 10W out, 24GHz 4W out) and so on - this side is later on top, because the heatsink for the PAs is on top - also IF TRX YAESU FT817 will be mounted on top

On the second floor are the modules for the GPS RX, 10MHz PLL, ON4IY roverbox (shows data from GPS like locator, height ASL, UTC.....display is 2x16 OLED) and a CW keyer (pc keyboard needed for operation)

Now a lot of wires are inside

Front with OLED display (icewhite) for the GPS datas and output control

Back side

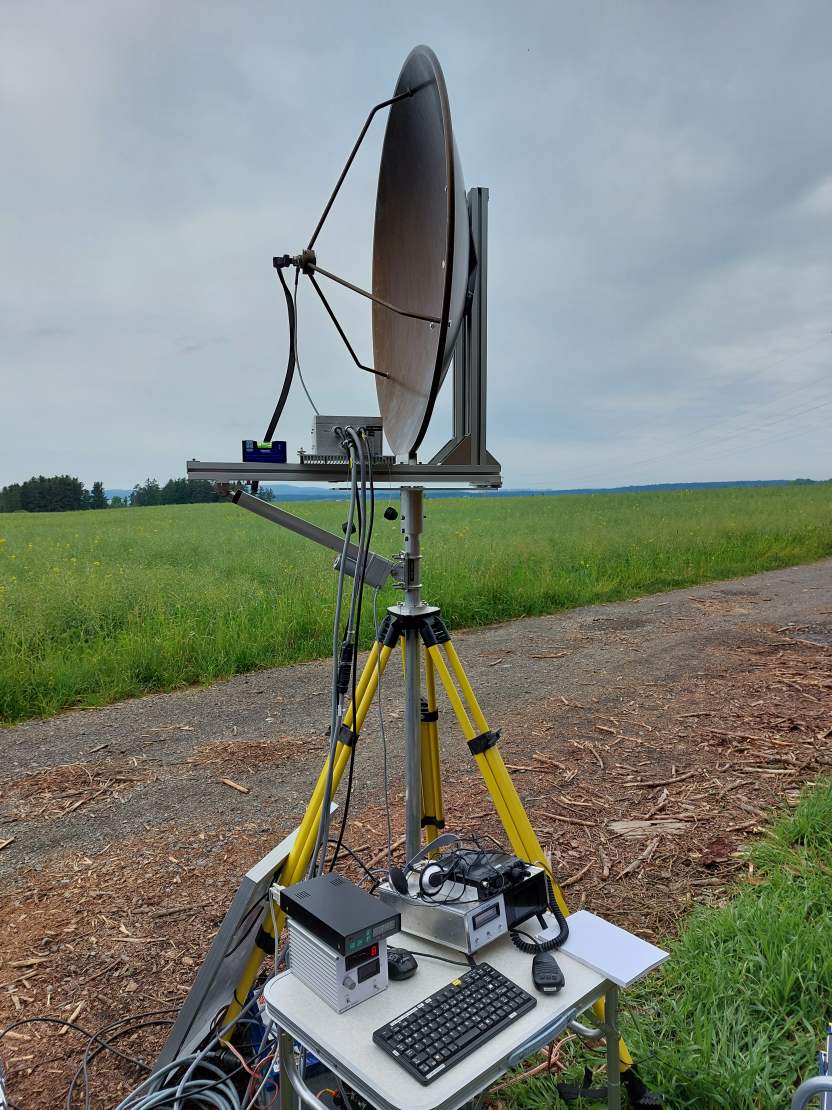

48cm dish with dualband feed 10/24GHz (DJ7FJ design)



....ready for skeds


µw activity from JN57VX 07.12.2016


µw activities from JN58IT 02.-04.08.2016

view direction north

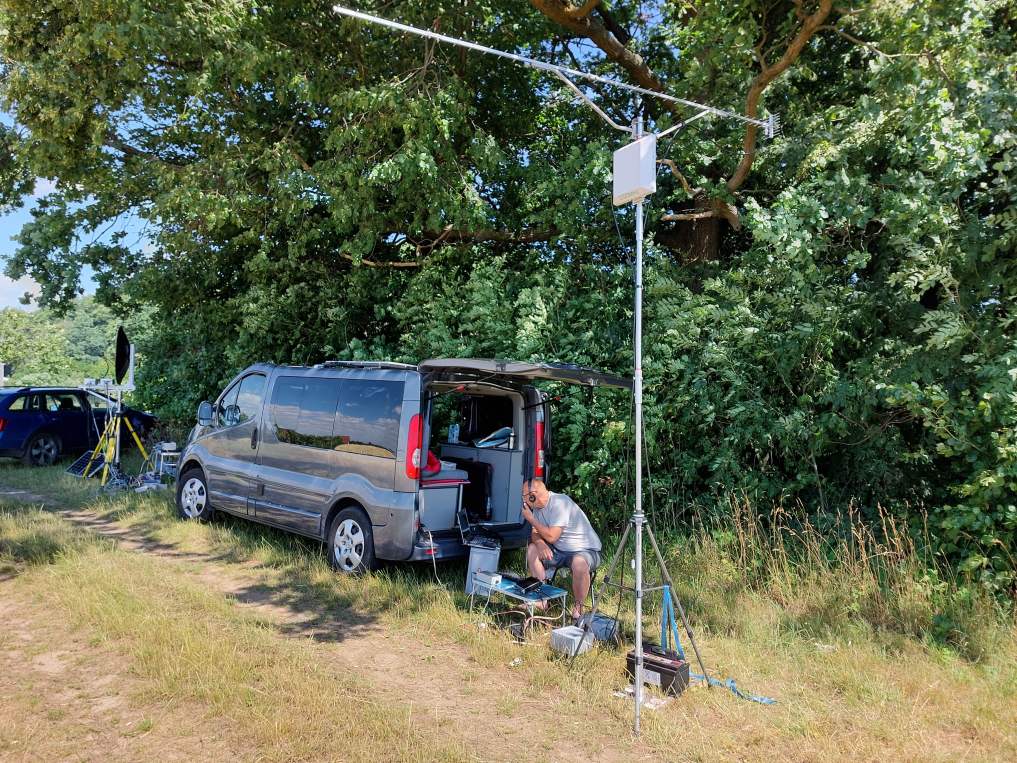

µw activities from JO71AE 02.-03.07.2016

mountain Schwedenstein (south side) 380m asl

view dir south - some minutes before the thunderstorm arrieved


µw activities from JO70AX 04.07.2016

Hohburkersdorfer Rundblick 380m asl

view direction mountain Lillienstein

view direction DL7QY JN59BD


µw activities from JO41

I was QRV from mountain Koeterberg (JO41PU) 05.06.2016 with 6 and 9cm

I was QRV from mountain Koeterberg (JO41PU) 20.08.2016 with 3/6 and 9cm








µw activities from JO51

activities from JO51 on 6cm and 9cm 21.08.2016
mountain "Birkenberg" JO51EL (540m asl)

Wolfgang DK5AI and Lorenz DL6NCI



activities from JO51 on 6cm and 9cm april 2016
mountain "Birkenberg" JO51EL (530m asl)

New 9cm Transverter, 70cm dish, 25W out, GPS controlled LO, display for GPS data


µw activities from JO41

I was QRV from mountain Koeterberg (JO41PU) during october contest 2015



3 and 6cm, also 24 and 47GHz














microwave-roundtable (1950 ???)
