Acitvities via QO-100

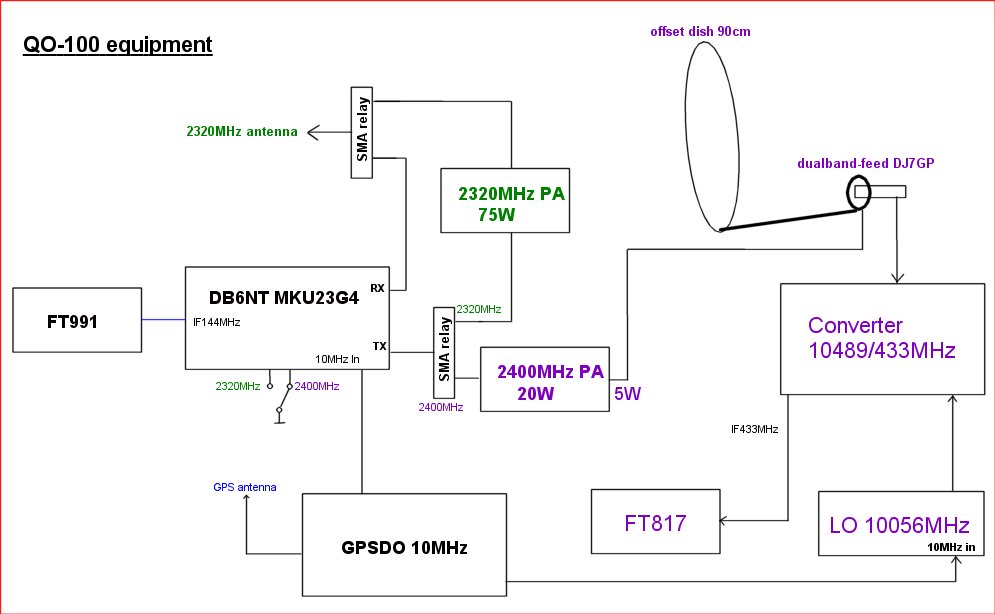

equipment at my home QTH

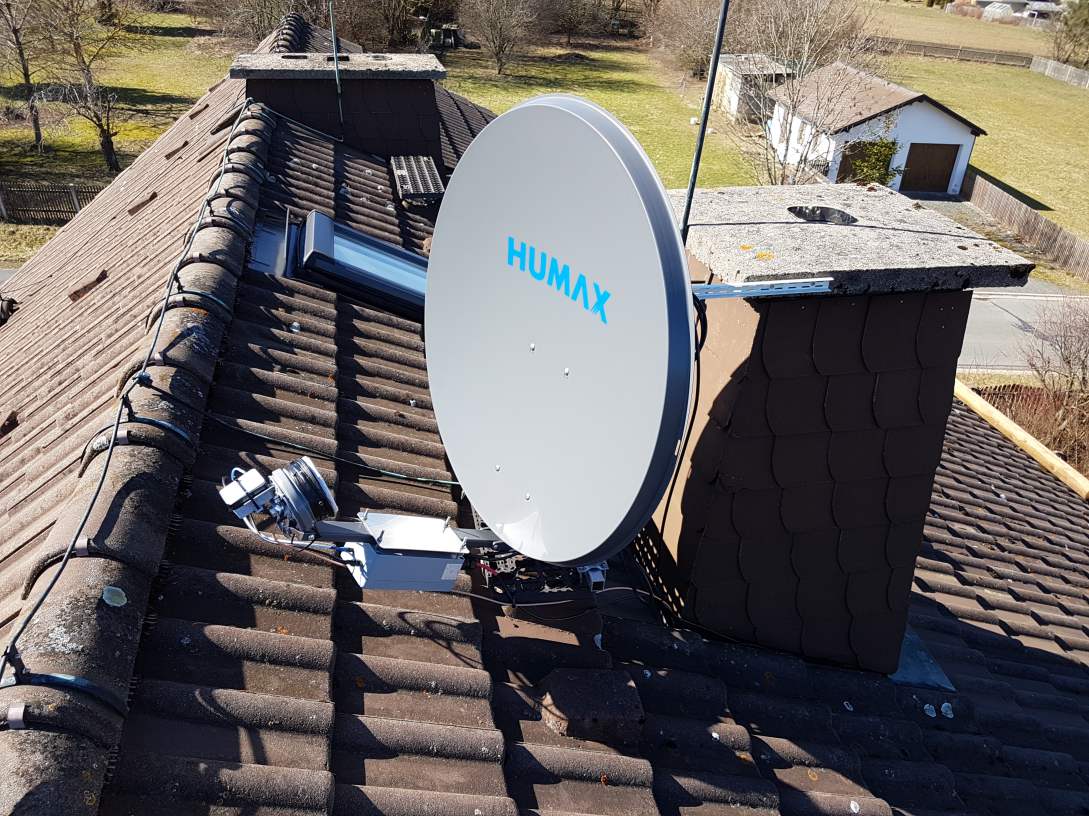

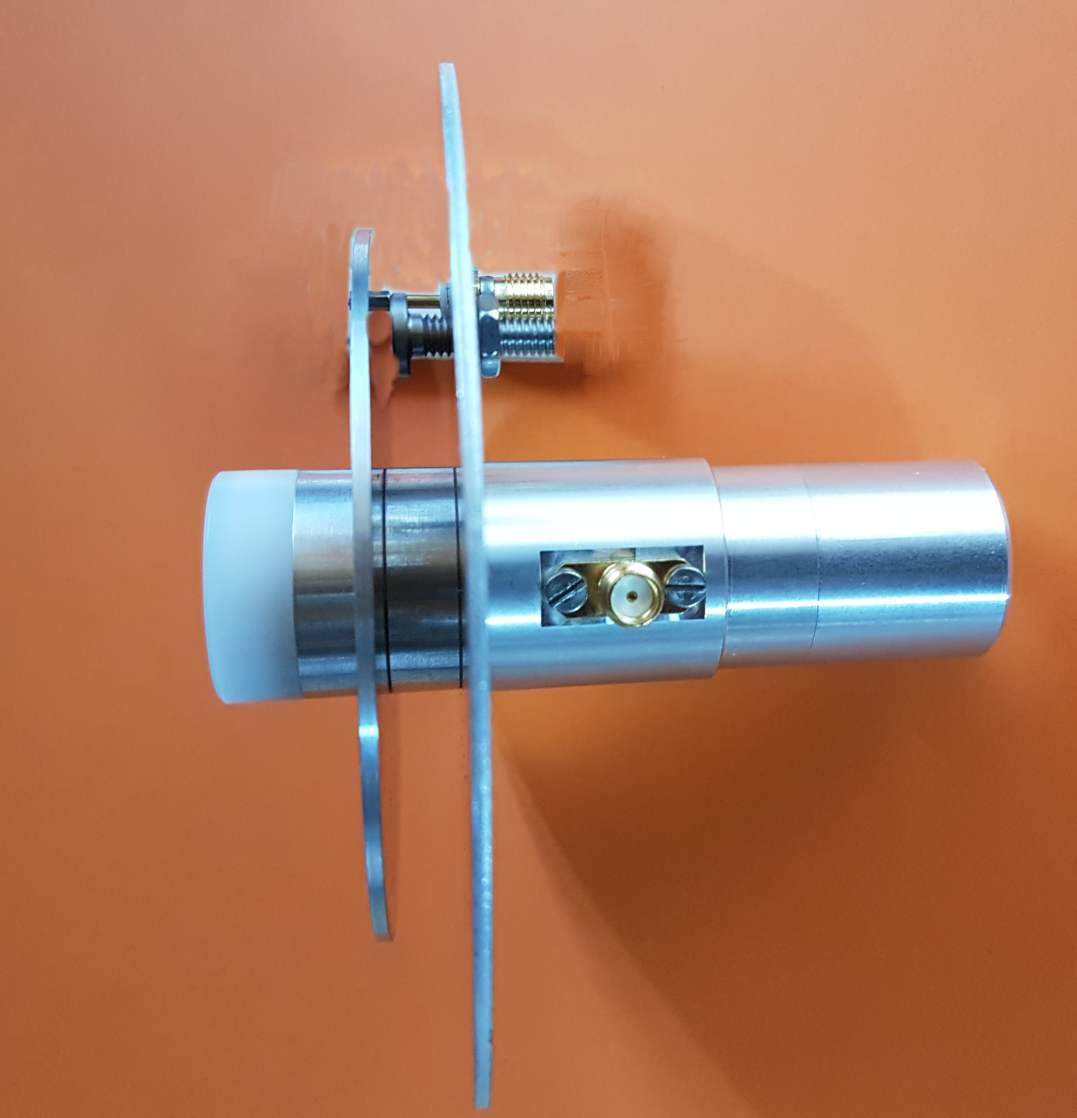

Antenna	90cm dish with dual-bandfeed DJ7GP ( available at https://www.bamatech.net )
RX	Converter 10489/433MHz GPS controlled LO (part of a DB6NT 10GHz transverter)
NF	1.4dB
Gain	28dB
TX	MKU23G4 (GPS controlled LO) + Stealth SM2527-47L PA
P out:	max. 30W reduced to 5W at the moment



---

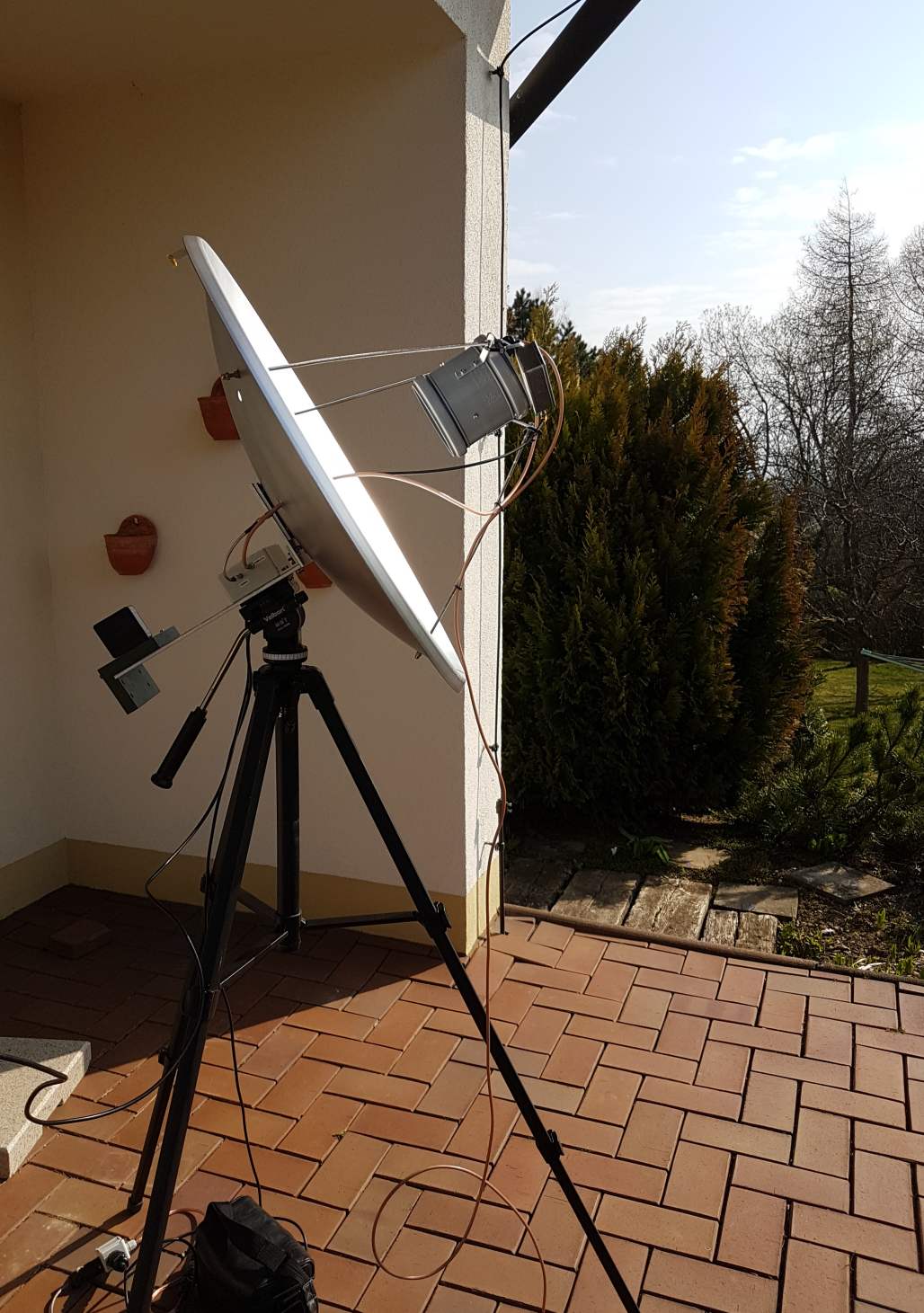

equipment for portable operation

Antenna	70cm dish with dual-bandfeed DJ7GP ( available at https://www.bamatech.net )
RX	Converter 10489/433MHz GPS controlled LO
NF	1.4dB
Gain	20dB
TX	MKU23G4 (GPS controlled LO) + Stealth SM2527-47L PA
P out:	max. 30W reduced to 8W at the moment

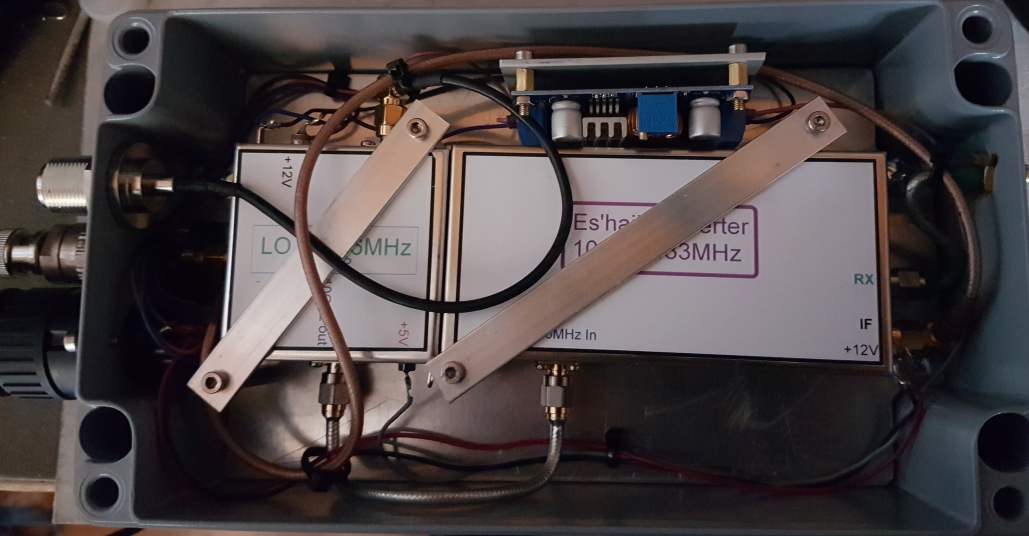

Converter 10489/433MHz (part of a DB6NT MKU10G2 transverter(only RX and mixer) + PLL LO (GPS controlled)

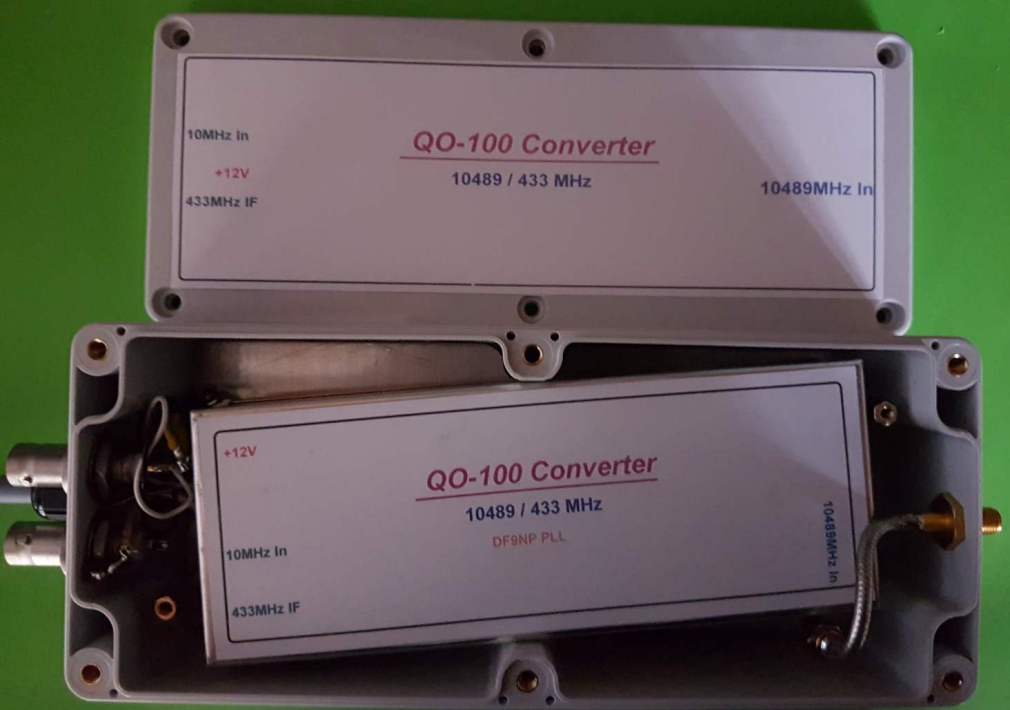

Another version of the Converter 10489/433MHz (former AO40 converter + 5028MHz PLL with 10MHz reference input)

STEALTH SM2527-47L PA

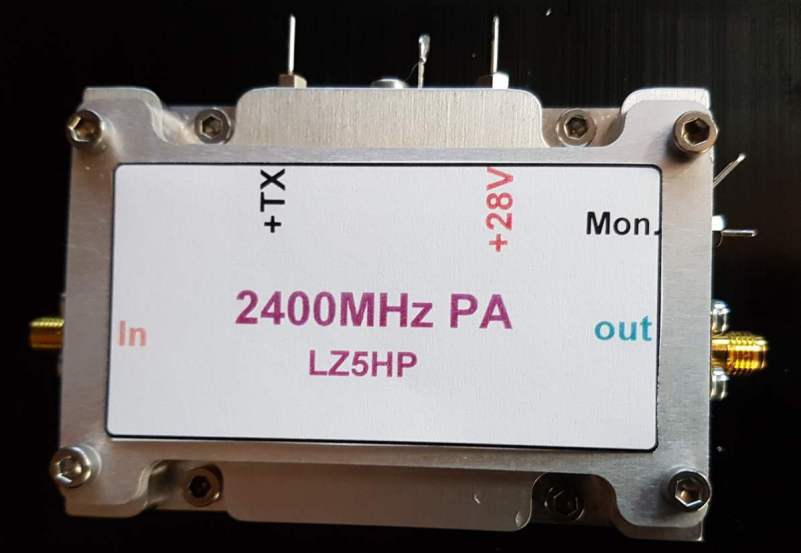

LZ5HP 2400MHz PA (P out >20W)







---
